16 Mar 2022

DROPTIC® LM033PER : one of the smallest aerial drop cables on the market

Telenco has developed a new optical drop cable: the DROPTIC® LM033PER. This new cable meets the demand for an outdoor aerial cable with up to four fibres, combining lightness and performance. The design office has designed and tested this drop cable, enabling overhead or underground FTTH connection.


LM033PER aerial cable: inspired by the Orange L1092 specification

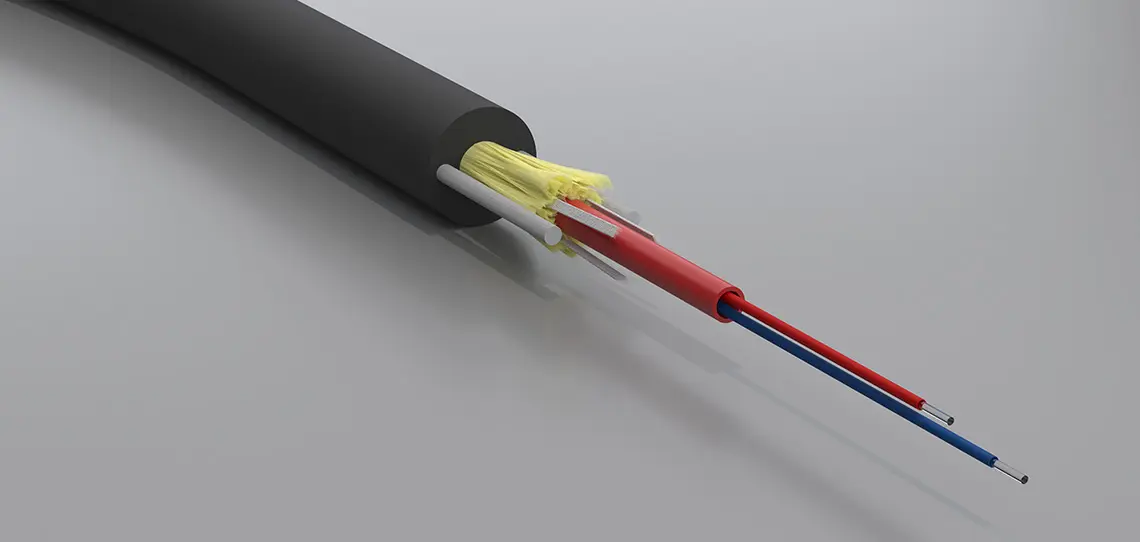

In order to develop the LM033PER cable, Telenco' design office was inspired by the ADSS aerial drop cables, which are widely used in France. To achieve the smallest possible diameter, our designers sized a high density polyethylene (HDPE) sheath and sufficient aramid, inserted a micro-module that can accommodate 4 fibres to withstand overhead spans of up to 50 metres. Sealing ropes were also added to the structure. As a result, Telenco offers a small (3.3 mm), extremely light (8 kg per kilometre) cable that can be deployed over spans of up to 50 m and withstand continuous winds of 110 km/h.


What are the advantages of using LM033PER aerial cable?


Small

LM033PER is one of the smallest drop cables on the market. With a diameter of 3.3 mm, it combines compactness and strength with low wind resistance. For underground installations, it can be deployed in occupied conduits.


Lightweight

Its low weight per kilometre (8 kg per kilometre) allows for packaging compatible with handling by field installers, and for a rapid customer connection on an outdoor deployment in any conditions.


Watertight

Three mini watertight ropes ensure that water propagation inside the cable is stopped. This allows the cable to be used in manholes that are sometimes flooded.


A proven structure adapted to all types of environments

The DROPTIC® LM033PER drop cable structure has already proven itself in distribution network deployments thanks to the complementary nature of the FRP reinforcements embedded in the HDPE sheath and the aramid reinforcements. It can therefore be used over a temperature range of -40°C to +70°C without impacting on optical transmissions. With a tensile strength of 150 N and a diameter of 3.3 mm, it can be installed by pulling in underground conducts over several hundred metres or deployed over 50 metre spans. DROPTIC® LM033PER is compatible with several Telenco® anchor clamps. We strongly recommend the use of the 5/35 FTTH R.
